Over 40 standard lift models | Up to 30 tonnes payload | Stroke approx. 0.32 x platform lift length | Lift is suitable for long loads | Lift is mechanically synchronised.

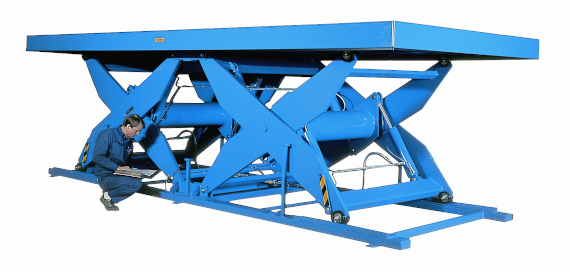

Double horizontal Scissor lift and platform lift table. A 22.5 Tonnes capacity lift for raising large items onto a production line.

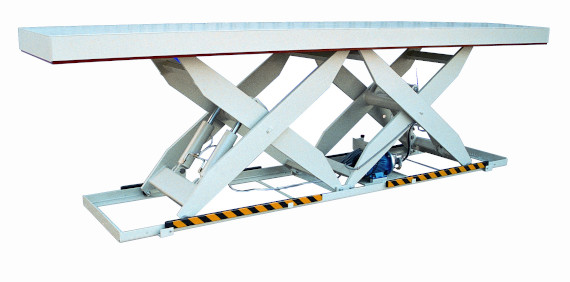

This 6 tonne unit (type EH60-165ADCN) is used for feeding long, heavy items into an automated process line. The double horizontal scissor lift has greasable bearing bushes and chrome plated main axle and cylinder bolts.
Double horizontal scissor range details
| Type | L x W (mm) | Stroke (mm) | CH (mm) | Load (kg) | Time (sec) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| EHL10-80 | 2000x800 | 600 | 190 | 1000 | 14 | 0.75 | 250 |
| EHL20-80 | 2000x800 | 600 | 190 | 2000 | 28 | 0.75 | 300 |
| EHL10-100 | 2500x800 | 800 | 190 | 1000 | 20 | 0.75 | 380 |
| EHL20-100 | 2500x1000 | 800 | 190 | 2000 | 32 | 0.75 | 420 |
| EHL40-100 | 2500x1000 | 780 | 220 | 4000 | 30 | 1.5 | 580 |
| EHL20-125 | 3200x1000 | 1000 | 230 | 2000 | 48 | 0.75 | 650 |
| EHL40-125 | 3200x1000 | 1000 | 240 | 4000 | 48 | 1.5 | 720 |
| EHL60-125 | 3200x1000 | 970 | 280 | 6000 | 48 | 1.5 | 800 |
| EHL20-155 | 4000x1000 | 1300 | 260 | 2000 | 30 | 1.5 | 1000 |
| EHL40-160 | 4000x1250 | 1300 | 320 | 4000 | 30 | 3.0 | 1300 |
| EHL60-165 | 4000x1250 | 250 | 390 | 6000 | 45 | 3.0 | 1600 |
| EHL20-165 | 5000x1500 | 1600 | 320 | 2000 | 30 | 3.0 | 1700 |
| EHL40-195 | 5000x1500 | 1600 | 400 | 4000 | 45 | 3.0 | 2000 |
| EHL60-195 | 5000x1500 | 1570 | 420 | 6000 | 55 | 3.0 | 2300 |
