Over 40 standard models | Upto 4 tonnes payload | Stroke approx. 1.2x platform length | Suitable for high rise lifts

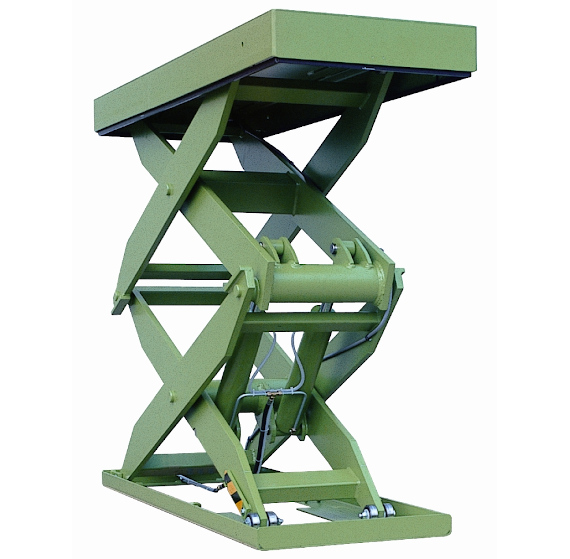

A 3 tonnes capacity, 3,000mm stroke lift used for stacking on a production line.
Note the twin arm roller bearings.

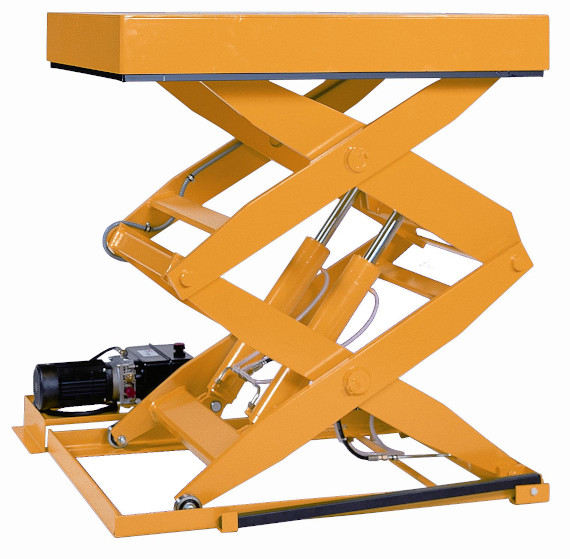

A 2 tonnes capacity, double vertical scissor lift with 1 metre remote power pack for easy maintenance access. The two cylinders give increased stability.
Double Vertical Scissor range detail
| Type | L x W (mm) | Stroke (mm) | CH (mm) | Load (kg) | Time (sec) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| EVL3-92 | 600x500 | 700 | 220 | 300 | 12 | 0.75 | 100 |
| EVL5-104 | 700x500 | 800 | 230 | 500 | 14 | 0.75 | 130 |
| EVL2-100 | 800x700 | 800 | 200 | 250 | 16 | 0.25 | 90 |
| EVL2-100M | 800x700 | 800 | 240 | 250 | 16 | 0.25 | 90 |
| EVL5-124 | 800x700 | 1000 | 240 | 500 | 14 | 0.75 | 140 |
| EVL5-140 | 1000x800 | 1150 | 250 | 500 | 12 | 0.75 | 200 |
| EVL10-140 | 1000x800 | 1150 | 265 | 1000 | 24 | 0.75 | 230 |
| EVL5-188 | 1250x800 | 1550 | 330 | 500 | 16 | 0.75 | 270 |
| EVL10-188 | 1250x800 | 1550 | 330 | 1000 | 32 | 0.75 | 350 |
| EVL20-200 | 1400x800 | 1600 | 410 | 2000 | 60 | 0.75 | 480 |
| EVL10-220 | 1500x1000 | 1800 | 380 | 1000 | 48 | 0.75 | 480 |
| EVL20-220 | 1500x1000 | 1700 | 420 | 2000 | 40 | 1.5 | 550 |
| EVL5-242 | 1600x800 | 2000 | 380 | 500 | 24 | 0.75 | 400 |
| EVL10-242 | 1600x1000 | 2000 | 380 | 1000 | 48 | 0.75 | 500 |
| EVL20-230 | 1600x1000 | 1800 | 440 | 2000 | 44 | 1.5 | 600 |
| EVL20-250 | 1800x1000 | 2000 | 500 | 2000 | 50 | 1.5 | 800 |
| EVL10-280 | 2000x1000 | 2400 | 420 | 1000 | 60 | 0.75 | 800 |
| EVL20-290 | 2000x1000 | 2400 | 520 | 2000 | 54 | 1.5 | 1000 |
| EVL20-320 | 2200x1250 | 2700 | 450 | 2000 | 44 | 3 | 1250 |
| EVL30-320 | 2200x1250 | 2600 | 600 | 3000 | 44 | 3 | 1450 |
| EVL10-365 | 2500x1250 | 3100 | 500 | 1000 | 62 | 1.5 | 1150 |
| EVL20-370 | 2500x1500 | 3000 | 700 | 2000 | 52 | 3 | 1400 |
| EVL30-370 | 2500x1500 | 3000 | 700 | 3000 | 52 | 3 | 1500 |
| EVL10-438 | 3000x1500 | 3600 | 740 | 1000 | 62 | 3 | 1380 |
| EVL20-438 | 3000x1500 | 3600 | 740 | 2000 | 62 | 3 | 1500 |
